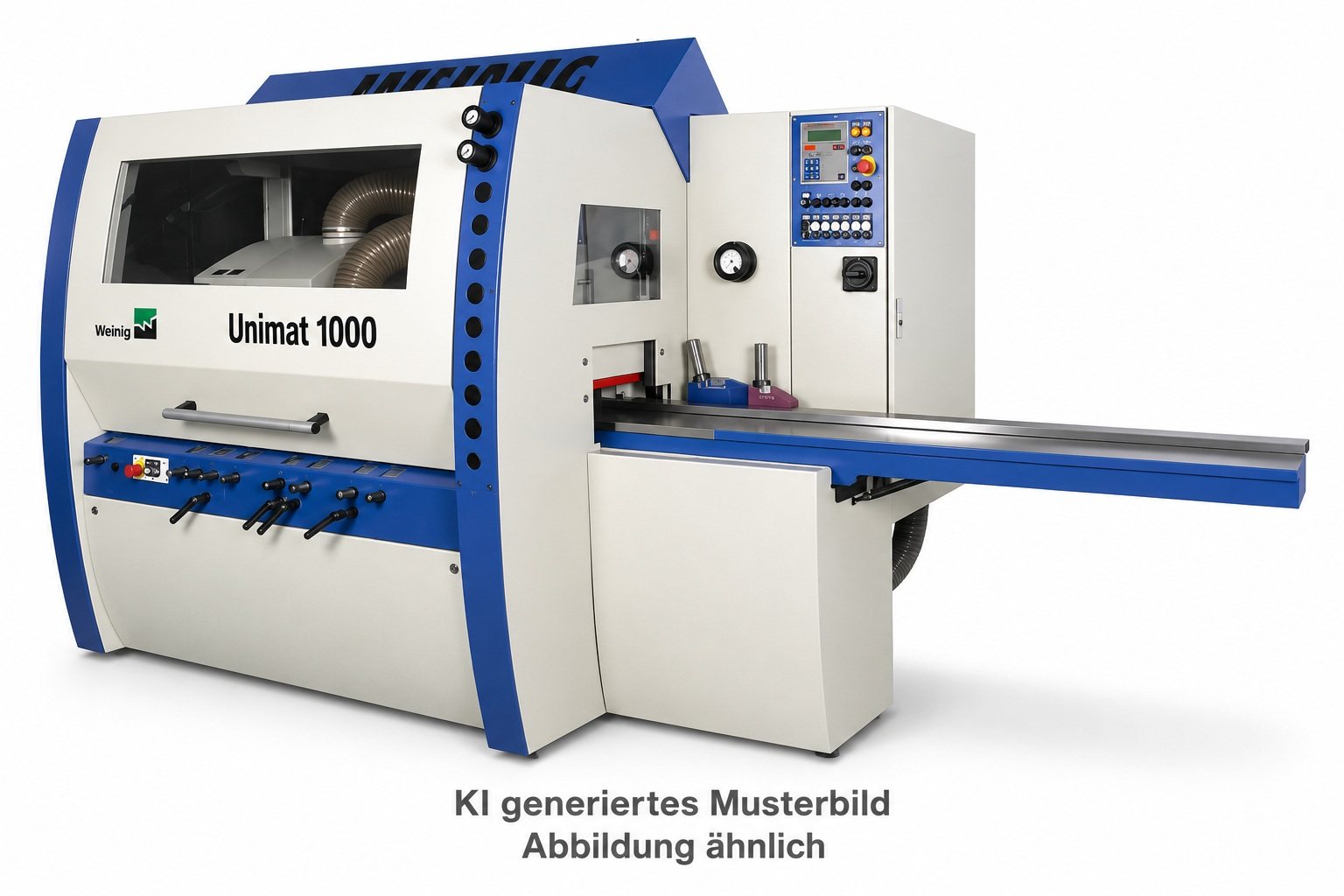

WEINIG Unimat 1000 Star four-sided planer
Second-hand Weinig Unimat 1000 Star automatic planing and moulding machine for four-sided planing and profiling of timber.
Data
General information
- Item number
- 100136
- Category
- 100 - Planing machines
- Location
- Tauberbischofsheim, Germany
- Availability
- In preparation
- Available
- 1
Technical data
- Spindles: 7
- Spindle 1: Bottom / 50 mm / 5.5 kW / 6,000 rpm
- Spindle 2: Right / 50 mm / 7.5 kW / 8,000 rpm
- Spindle 3: Left / 50 mm / 7.5 kW / 8,000 rpm
- Spindle 4: Right / 50 mm / 7.5 kW / 8,000 rpm
- Spindle 5: Top / 50 mm / 7.5 kW / 8,000 rpm
- Spindle 6: Bottom / 50 mm / 7.5 kW / 8,000 rpm
- Spindle 7: Top / 50 mm / 7.5 kW / 8,000 rpm
- Working width: 230 mm
- Working height: 120 mm
- Feed rate: 4 kW / 5–24 m/min

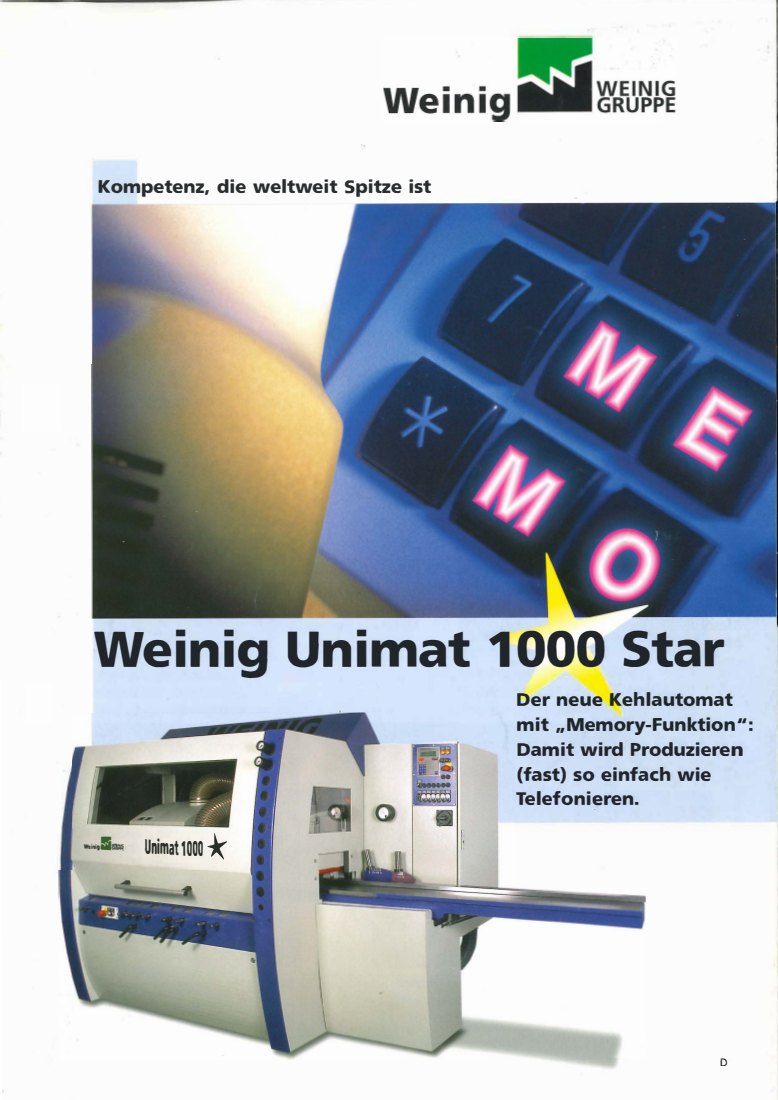

Brochures for this model
More information about WEINIG Unimat 1000 Star in the archive
