Weinig Unimat + Uniplan shelf line

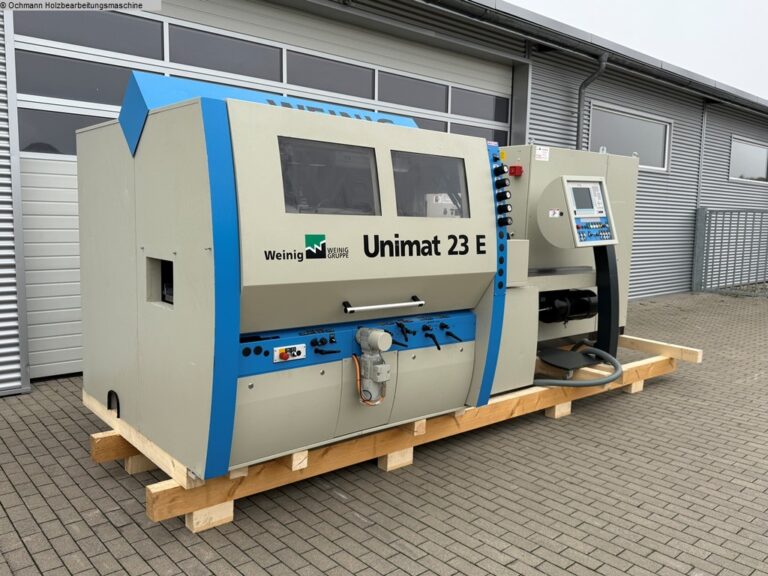

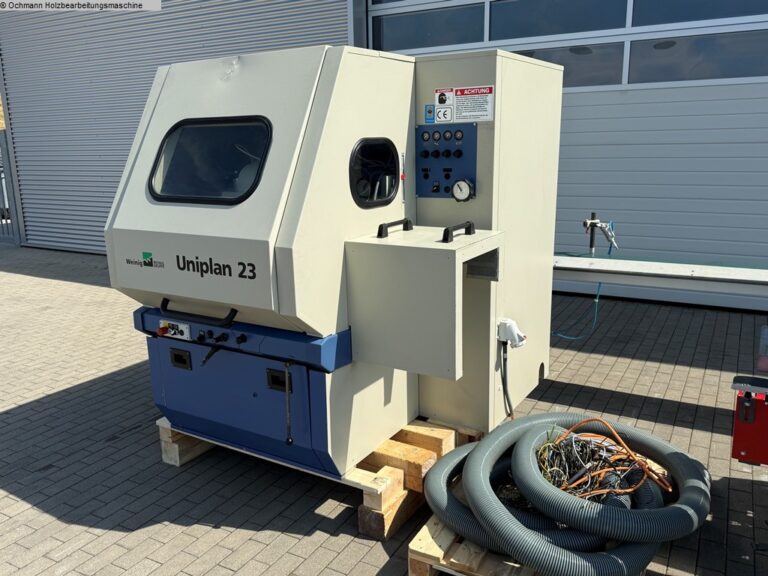

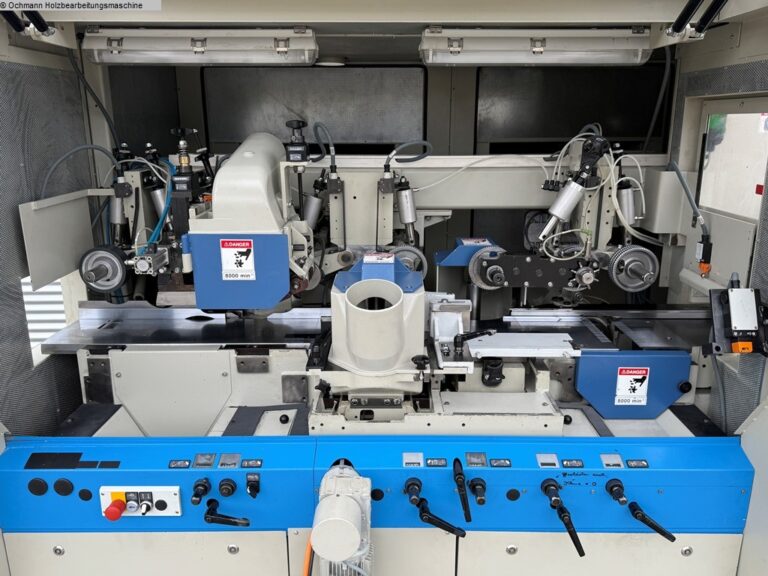

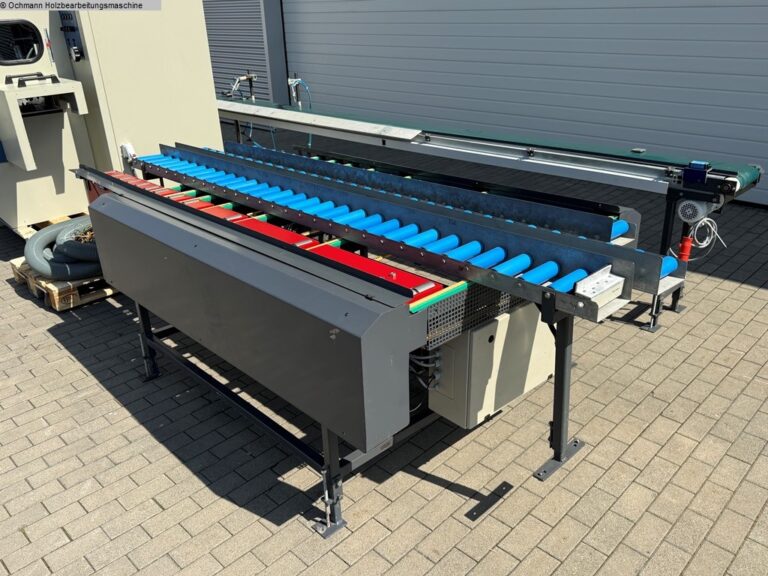

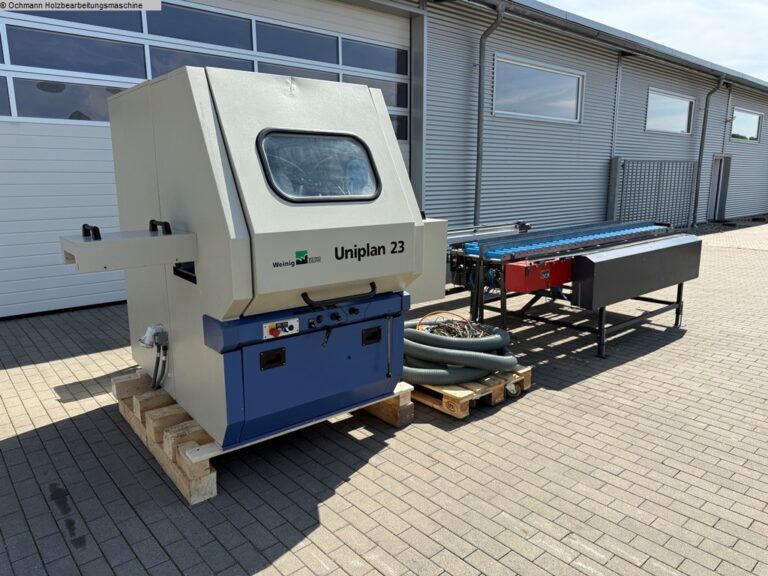

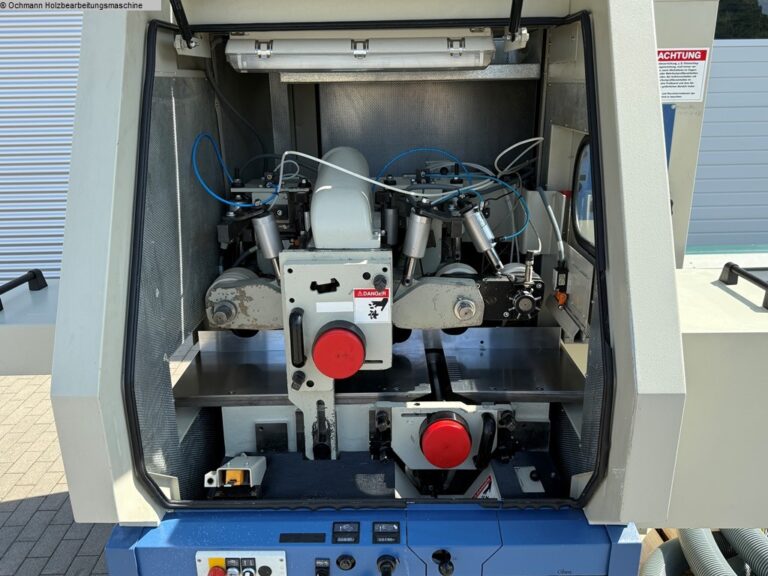

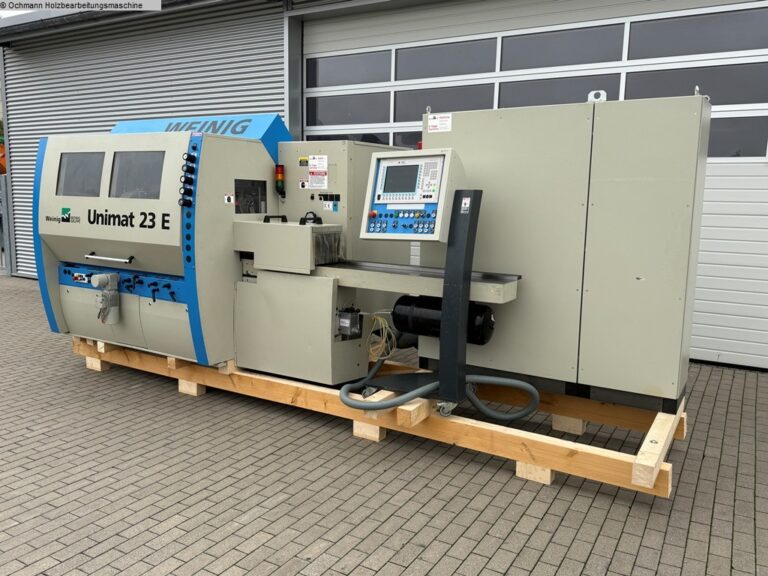

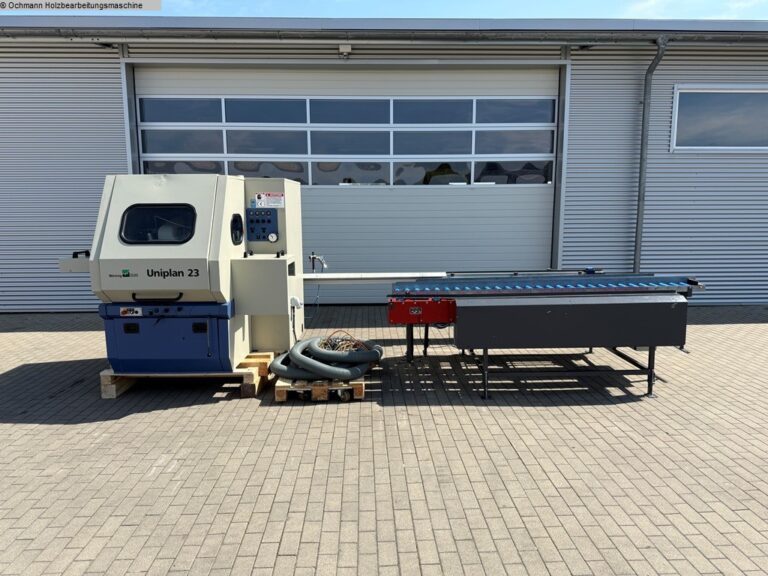

Planing line Weinig type Unimat 23 E + Uniplan 23 and including return conveyor. An NC-controlled line for planing and profiling window scantlings incl. glazing bead separation or other planing tasks with automatic return of the workpieces to the operator. Spindle 1: 7.5 kW / 50 mm / 8,000 rpm Spindle 2: 11 kW / 50 mm / 8,000 rpm Spindle 3: Shared motor with spindle 2 / 50 mm / 8,000 rpm Spindle 4: 7.5 kW / 50 mm / 8,000 rpm Spindle 1 Uniplan: 5.5 kW / 50 mm / 7,200 rpm Spindle 2 Uniplan: 5.5 kW / 50 mm / 7,200 rpm Operation: PC control Nexus NC axes: Unimat 2 + 3, Uniplan 1

Technical details:

Feed speed 5-24 m/min.
