Model

Wegoma VS48

Years: ~ 2014

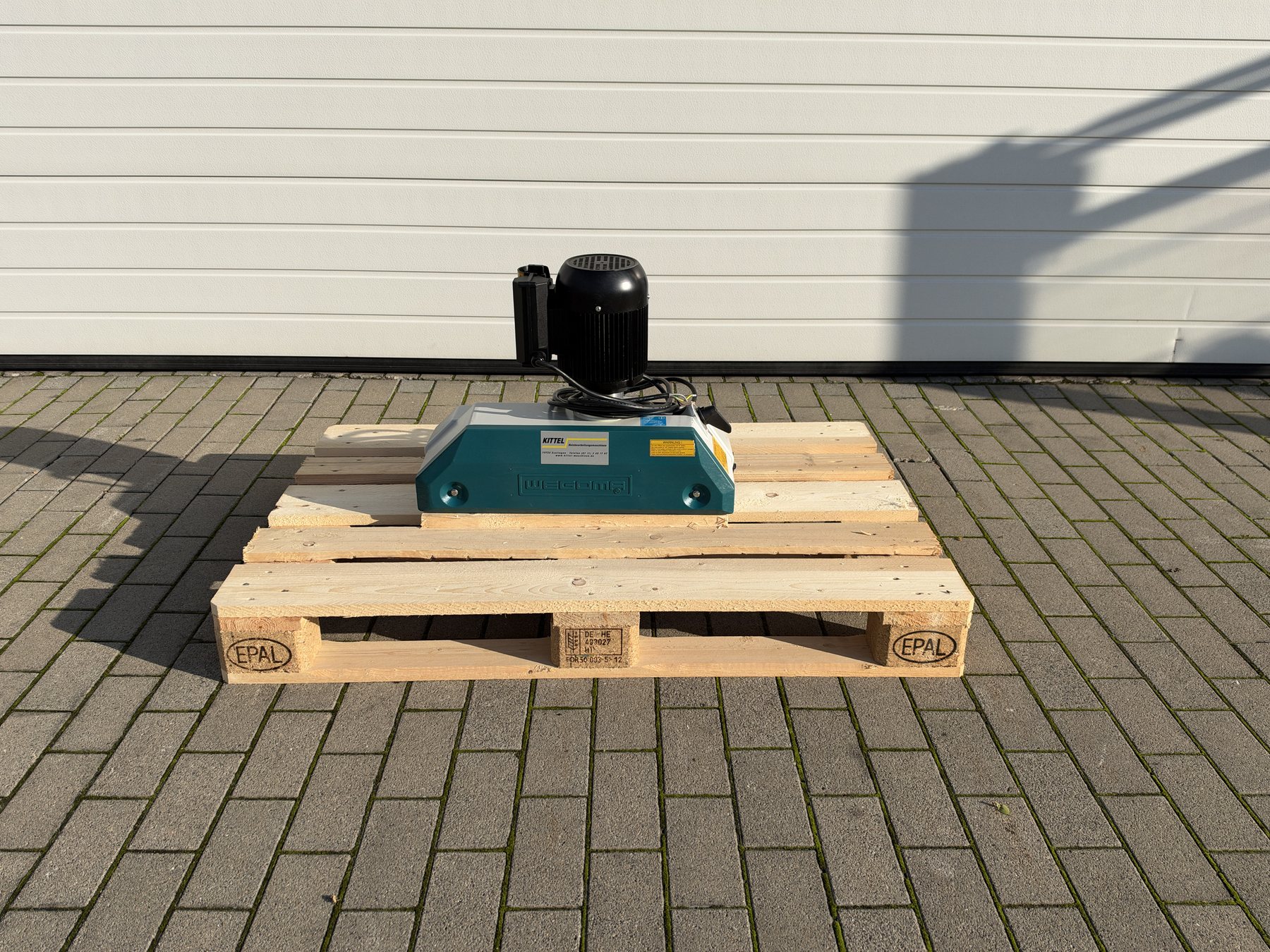

WEGOMA VS48 – 4-roller power feeder

The Wegoma VS48 is a power feeder for consistent workpiece feeding in woodworking. It has 4 feed rollers and eight selectable speeds. Its swivelling arrangement supports horizontal and vertical use, while forward and reverse operation accommodate different feeding directions.

Machining and Machine Configuration

A 0.75 kW drive and a metal gearbox with hardened gears drive the feed rollers. Each roller measures 120 mm in diameter and 60 mm in width. The Standard Plus stand includes a numerical height indicator for positioning. An extended mounting foot and large locking levers support fastening and adjustment.

Technical data for the standard version

Technical data for the standard version
BrandWEGOMA
ModelVS48
Machine typePower feeder
Supplier of the documented versionWEGOMA-VIRUTEX CONNECTION GmbH
Power0.75 kW
Voltage and frequency400 V, 50/60 Hz
Number of feed rollers4
Roller diameter × width120 × 60 mm
Number of speed settings8
DirectionForward and reverse
Maximum clearance height220 mm
Maximum reach1,050 mm
Weight with Standard Plus stand75 kg
Order number with Standard Plus stand34106085

Special equipment and model variants

Comfort stand
Listed as an accessory under order number 95105623.
Mounting kits
For machines with a support from Martin (96000330) and Hofmann/SCM (96000708). Compatibility with the individual machine must be checked before installation.
Feed roller with aluminium core
A 120 × 60 mm accessory roller, order number 92105871.
Model distinction
The VS38 has three rollers and weighs 70 kg with its stand; the VS48 has four rollers and weighs 75 kg with its stand. This description applies to the VS48 and does not automatically apply to versions with additional model suffixes.

Application and classification

The power feeder supports consistent workpiece feeding on a suitable woodworking machine. The stand, mounting position and selected speed must suit the machining operation. This description covers the documented version with the Standard Plus stand.

Source & documentation

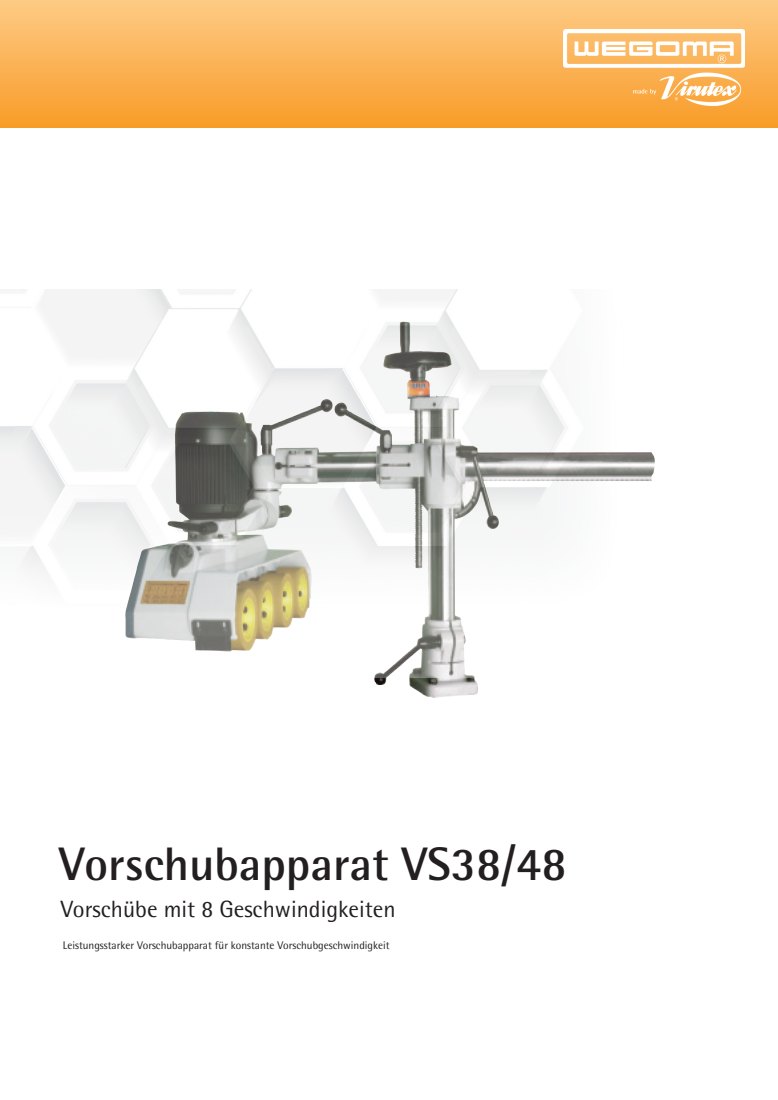

WEGOMA-VIRUTEX CONNECTION GmbH, “Vorschubapparat VS38/48 – Vorschübe mit 8 Geschwindigkeiten”, German, no identifiable publication year, PDF pages 1–2. Archive file: wegoma-virutex-vorschubapparat-vs3848.pdf.

Note: This text was created and checked with the assistance of AI. Despite careful checking, errors may remain.

Brochures for this model

Current and archived VS48 machines from Wegoma.

Available machines1

Archived machines0

No machines currently listed in this section.
