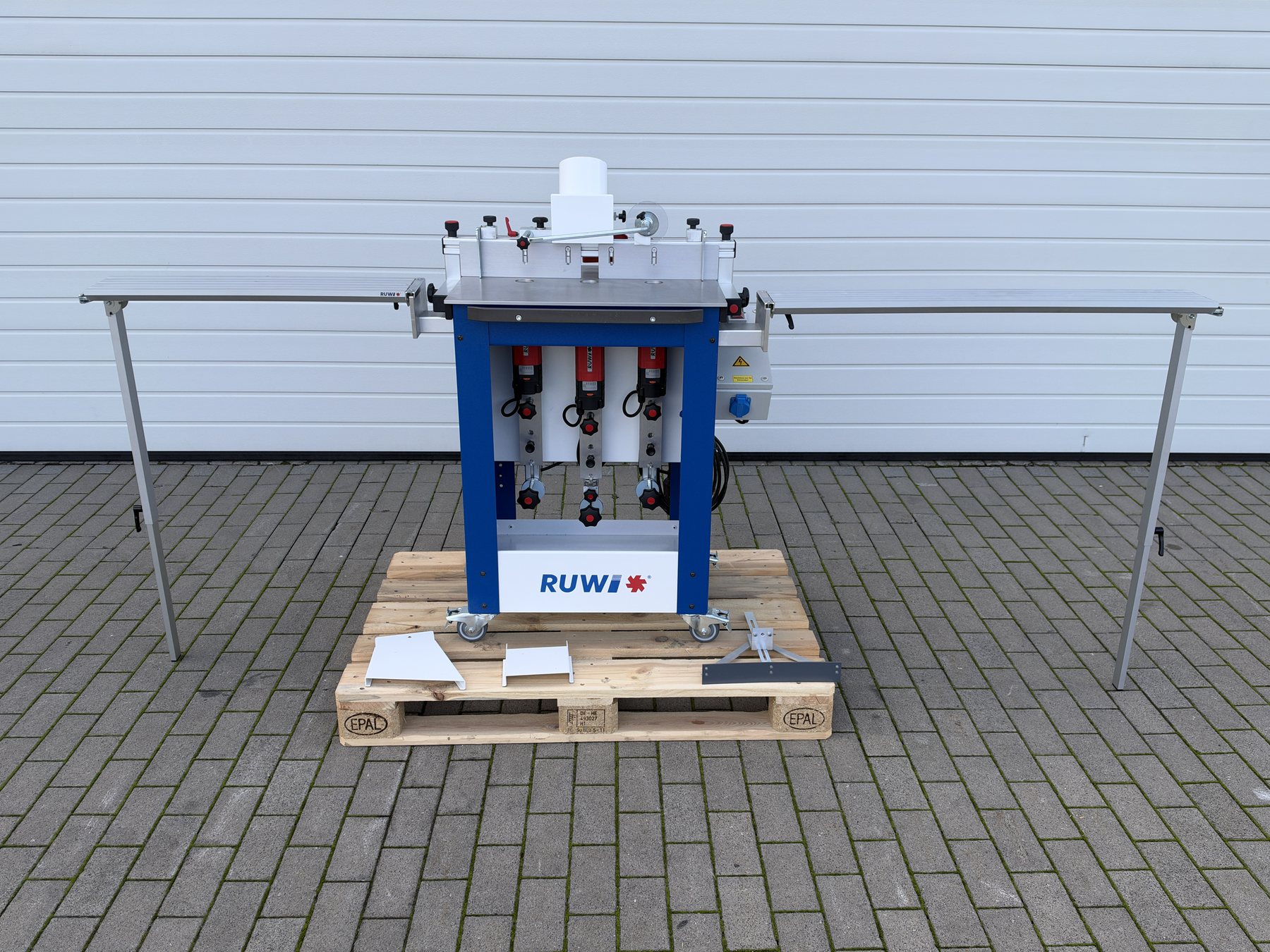

RUWI Classic – Three-spindle router table

The RUWI Classic is a router table for wood and wood-based panels. Three preset cutters enable successive operations such as chamfering, rounding and grooving with fewer tool changes.

Machining and Machine Configuration

Three router motors sit beneath the table. Dust extraction operates above and below the work surface. Equipment includes a cutter guard and castors with brakes.

Technical data for the standard version

Technical data for the standard version
Manufacturer	RUWI
Model	Classic
Machine type	Three-spindle router table
Motors	3 × 1,050 W
Voltage	230 V
Speed	8,000–25,000 rpm, continuously adjustable
Table surface	640 × 500 mm
Working height	910 mm
Maximum cutter diameter	40 mm
Standard collet	8 mm
Extraction connection	120 mm
Net weight	91 kg

Special equipment and model variants

Accessories: Straight and curved fences and a table extension expand the workstation. Retrofitting fine adjustment depends on the production version; older tables require clarification with the manufacturer.

Application and classification

Suitable for individual components, small batches and finishing operations. Specifications describe the currently offered model and do not automatically apply to older Classic machines. Classic Performance is a different version.
